Control Cable as per BS EN 50288-7 / IS 694 / IS 1554

Request a Quote Download Datasheet

Overview

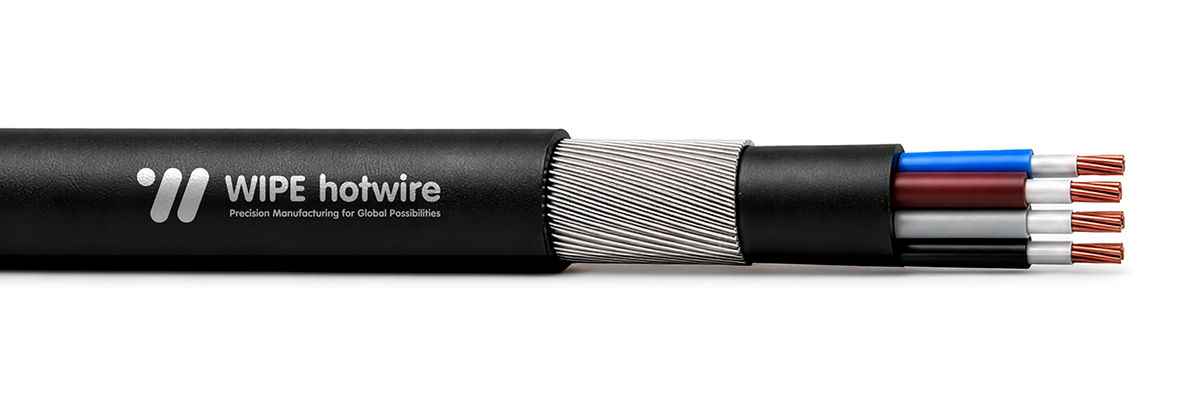

WIPE hotwire Power & Control Cables are manufactured in strict compliance with BS EN 50288-7 / IS 694 / IS 1554, ensuring reliable performance in industrial control applications. Designed for fixed installations, these cables provide dependable power and signal transmission with robust mechanical strength and resistance to electromagnetic interference. The construction incorporates high-quality insulated conductors with optional overall screening to support stable and efficient control system operations.

Features & Specifications

Click a tab to view the key features or the full construction and technical specifications.

  • Manufactured as per BS EN 50288-7 / IS 694 / IS 1554 compliant
  • Voltage grade of 300V and 500V
  • Available in cable sizes of 0.5mm², 0.75mm², 1mm², and 2.5mm²
  • Available across 2C to 37C configurations (2C, 3C, 4C, 5C, 6C, 7C, 8C, 10C, 12C, 16C, 18C, 19C, 20C, 24C, 30C, 37C)
  • Stranded copper conductor as per EN 60228
  • Individual and collective screening with tinned copper drain wire
  • Available in armoured and unarmoured constructions

Applications

  • Industrial control panels
  • Fixed installations requiring dependable power and signal transmission
  • Systems requiring resistance to electromagnetic interference

Certifications & Standards

  • BS EN 50288-7
  • IS 694
  • IS 1554
  • EN 60228 (Conductor)
  • EN 50290-2-22/27 (Sheath)
  • EN 50288 (Armour)

Dimensional Data — 300 V multi-core, stranded copper, PVC/PE insulated, aluminium mylar taped overall shielded, armoured & unarmoured control cables (BS EN 50288-7)

Area of Conductor (mm²)No. of CoresMin. Insulation Thickness (mm)Inner Sheath, Armoured (mm)G.I. Armour Wire Dia. (mm)Outer Sheath, Armoured (mm)Overall Dia., Armoured (mm)Outer Sheath, Unarmoured (mm)Overall Dia., Unarmoured (mm)
0.520.260.80.91.39.60.85.2
0.530.260.80.91.39.90.85.5
0.540.260.80.91.310.30.95.9
0.550.260.90.91.3110.96.6
0.560.260.90.91.311.50.97.1
0.570.260.90.91.311.50.97.1
0.580.260.90.91.312.30.97.9
0.5100.260.90.91.313.40.98.8
0.5120.260.90.91.413.70.99.1
0.5160.2610.91.414.81.010.2
0.5180.2610.91.415.31.010.7
0.5190.2610.91.415.91.010.7
0.5200.2610.91.415.91.010.3
0.5240.2610.91.4171.012.4
0.5300.261.10.91.519.11.113.3
0.5370.261.11.01.519.41.113.4
0.7520.260.80.91.310.60.86.6
0.7530.260.80.91.3110.97.2
0.7540.260.90.91.311.60.97.8
0.7550.260.90.91.312.20.97.8
0.7560.260.90.91.313.20.98.6
0.7570.260.90.91.413.40.99.4
0.7580.2610.91.414.51.09.9
0.75100.2610.91.415.81.010.2
0.75120.261.11.01.416.61.011.2
0.75160.261.11.01.416.41.011.8
0.75180.261.11.01.5171.112.4
0.75190.261.11.01.519.51.113.5
0.75200.261.11.01.520.61.114.7
0.75240.261.11.01.522.11.115.4
0.75300.261.21.11.622.71.216.0
0.75370.261.21.11.626.11.218.2

Table continues for 1 mm² and 2.5 mm² conductor sizes; full data available in the downloadable datasheet.

Related Products

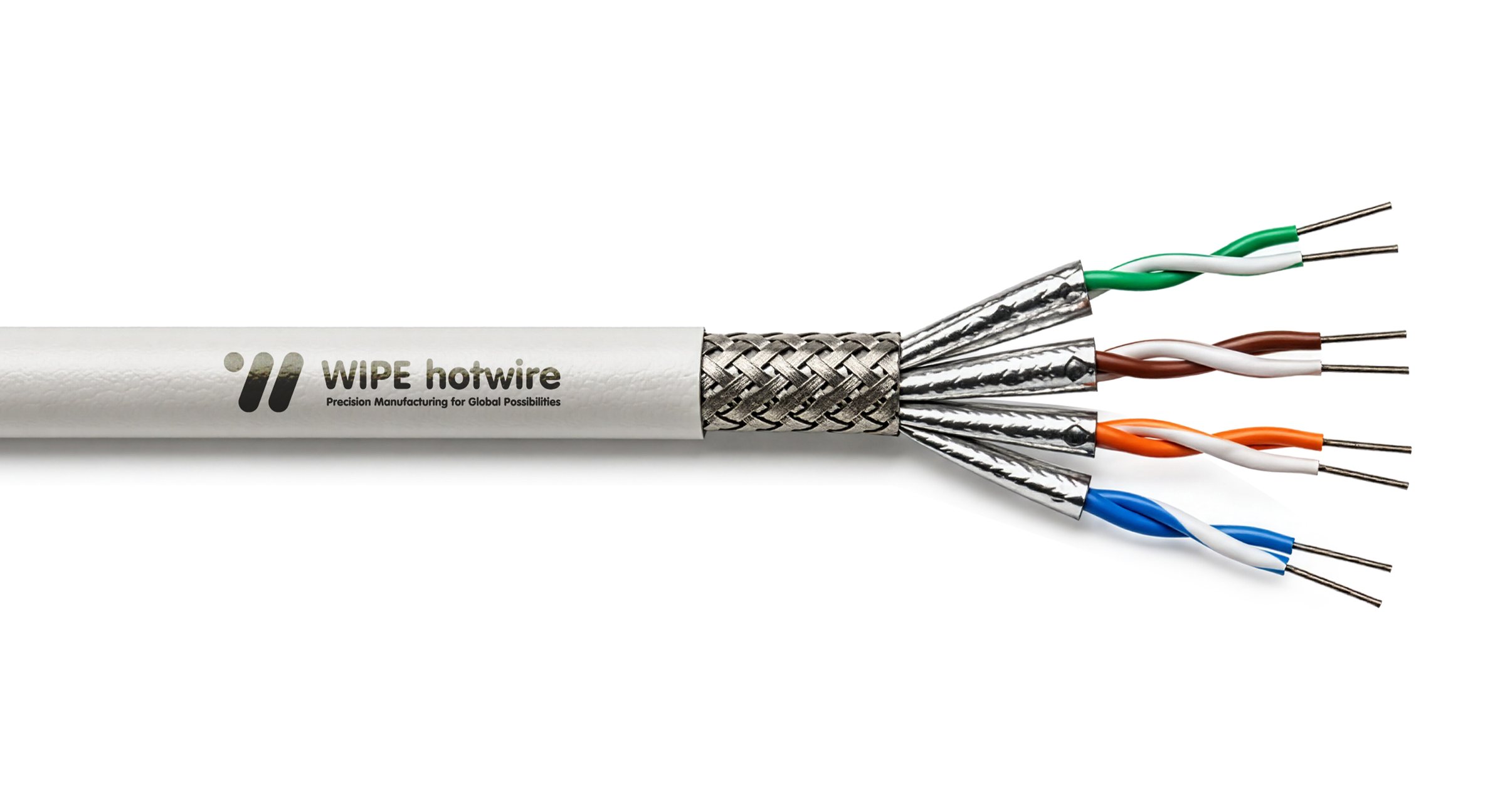

Instrumentation Cable Process Automation Instrumentation Cable Screened pairs and triads that keep low-level signals clean. View High-Temperature Control Cable Process Automation High-Temperature Control Cable Control cables with high-temperature insulation systems. View Fire Alarm & Signaling Circuit Cable Process Automation Fire Alarm & Signaling Circuit Cable Cables for fire detection and signalling circuits. View VFD Cable Process Automation VFD Cable Symmetrical screened drive cables that contain switching noise. View

Frequently Asked Questions

What is a control cable used for?

A control cable is used to transmit low-energy electrical signals for power, signal transmission, measurement, control, and regulation in industrial control panels and fixed installations, such as machinery, motors, and robotic systems.

What standards are WIPE hotwire Control Cables manufactured to?

WIPE hotwire Control Cables are manufactured in strict compliance with BS EN 50288-7, IS 694, and IS 1554, ensuring dependable performance and consistent quality across industrial control applications.

What is the difference between armoured and unarmoured control cables?

Armoured control cables include a galvanised steel strip or round armour layer for added mechanical protection, making them suitable for environments with a higher risk of physical damage. Unarmoured control cables are lighter and are used where such protection is not required.

What insulation options are available for control cables?

WIPE hotwire Control Cables are available with PVC, PE, XLPE, HFFR PVC, or LDPE insulation, allowing selection based on temperature, flexibility, and application requirements.

Are control cables available in multi-core configurations?

Yes, WIPE hotwire Control Cables are available in configurations ranging from 2 core to 37 core, with individual and collective screening options to support EMI protection in demanding industrial environments.

Have a Specific Requirement?

Our experts can help you find the right cable for your application.

Talk to Our Team Request a Sample

WIPE hotwire is a control cable manufacturer in India, producing Power & Control Cables engineered to transmit low-energy electrical signals for power, signal transmission, measurement, control, and regulation across industrial control panels and fixed installations, including machinery, motors, and robotic systems. Manufactured in strict compliance with BS EN 50288-7, IS 694, and IS 1554, our BS EN 50288-7 control cables are built to deliver dependable performance and consistent quality across demanding industrial control cable applications.

Available as PVC control cable and XLPE control cable variants in 0.5mm², 0.75mm², 1mm², and 2.5mm² sizes at voltage grades of 300V and 500V, our multi-core control cable range spans configurations from 2 core to 37 core. With individual and collective screening using tinned copper drain wire, these shielded control cables suit systems requiring EMI protection. Constructed with stranded copper conductors to EN 60228, they're available in both armoured and unarmoured control cable constructions; armoured variants feature a galvanised steel strip or round armour layer for added mechanical protection in higher-risk environments.

Built for industrial control panels, fixed installations, and systems that require resistance to electromagnetic interference, the WIPE hotwire Power & Control Cable range is custom-engineered to your application, manufactured in-house, and backed by our commitment to consistent quality and on-time delivery.
