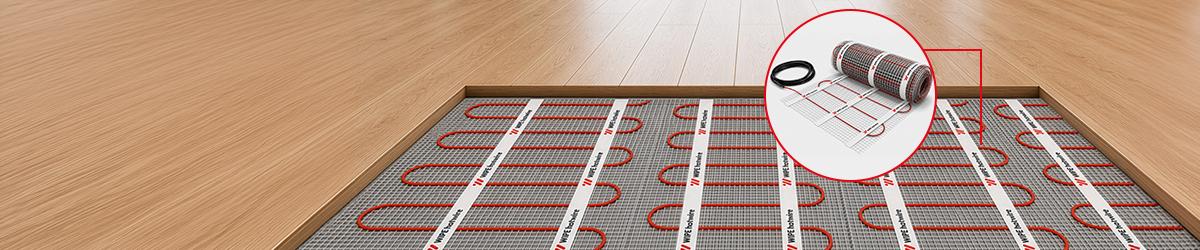

Underfloor Heating Cable & Mat

Name: Underfloor Heating Cable & Mat
Brand: WIPE hotwire

Overview

WIPE hotwire Underfloor Heating Cable and Mat are engineered to deliver consistent, energy-efficient warmth for indoor electric floor heating applications. Built with twin ETFE-insulated conductors and a high-temperature outer jacket, these solutions are available in both loose cable and pre-spaced mat formats to suit a range of installation needs, from residential rooms to commercial spaces.

Region

Features & Specifications

Click a tab to view the key features or the full construction and technical specifications.

Twin solid/multi-strand ETFE insulated conductors, 0.2 inch diameter
Aluminium foil with drain wire and TPC braid shielding
High-temperature PVC outer jacket, 30 Mil thickness
3.8W/ft. linear wattage, 120V and 240V, 60Hz
FG Mesh carrier, available in sticky and non-sticky mat variants
1.64 ft. mesh width, heat density of 11.4, 12, and 15.2 W/Sq ft
Supply lead available in separate and integrated connection types, 8 to 16 ft. cable length

Conductor	Solid/multi-strand tinned copper, AWG 18 and 16
Insulation	ETFE, twin solid/multi-strand construction, 0.2 inch diameter
Shielding	Aluminium foil with drain wire and TPC braid
Outer Jacket	High-temperature PVC, 30 Mil thickness
Linear Wattage	3.8W/ft.
Voltage	120V and 240V, 60Hz
Carrier	FG Mesh, sticky and non-sticky mat variants
Mesh Width	1.64 ft.
Heat Density	11.4, 12, and 15.2 W/Sq ft
Cable Length	8 to 16 ft., separate and integrated connection types

Heating conductor	Multi-strand/solid (customizable)
Return conductor	Multi-strand/solid (customizable)
Insulation	PTFE or XLPE (customizable)
Shielding	Polyester laminated aluminum foil with drain wire
Outer jacket	High-temperature PVC
Cable diameter	5.0 mm (nominal)
Cold tail conductor	Solid/multi-strand tinned copper (AWG 18 and 16)
Cold tail insulation	XLPE or PTFE
Cold tail shielding	Aluminum foil with drain wire
Cold tail outer jacket	High-temperature PVC, 30 Mil thickness
Cold tail length	3.5 m
Mat carrier	FG mesh, decoupling membrane, metallic strip
Mesh type	Sticky, non-sticky, cross-filament tape
Mesh width	0.5 m
Heat density (cable spacing)	100 W/m² (70 mm), 125 W/m² (87.5 mm), 150 W/m² (105 mm), 165 W/m² (115 mm)

Applications

Indoor floor heating for residential spaces
Commercial flooring requiring energy-efficient heating
New installations and renovation projects requiring an electric underfloor heating mat or floor heating cable

Certifications & Approvals

cUL

UL 758

UL 1683

UL 11537

UL 21937

CSA C22.2

Wet Rated

Related Products

Electric Underfloor Heating Aluminium Foil Heating Mat Thin-profile foil mats for wood and laminate floating floors. View

Electric Underfloor Heating In-Slab Underfloor Heating Cable Heavy-duty heating cable for in-concrete slab installations. View

Electric Underfloor Heating Earth-Soil Heating System Earth-mass ground heating for large surface areas under concrete. View

Frequently Asked Questions

What is an underfloor heating cable and mat?

An underfloor heating cable and mat system provides electric floor heating by delivering consistent heat beneath the floor surface. WIPE hotwire offers both underfloor heating cables and heating mats for residential and commercial applications.

What is the difference between an underfloor heating cable and an underfloor heating mat?

An underfloor heating cable offers flexibility for different floor layouts, while an underfloor heating mat provides a pre-spaced cable arrangement for easier installation across defined floor areas.

What flooring can WIPE hotwire underfloor heating cables and mats be used with?

WIPE hotwire electric floor heating cables and mats are designed for a range of indoor floor applications and can be configured for different flooring requirements.

What are the specifications of WIPE hotwire underfloor heating cables and mats?

WIPE hotwire underfloor heating cables and mats feature ETFE-insulated heating conductors, aluminum foil with drain wire and TPC braid shielding, high-temperature PVC outer jackets, and 3.8 W/ft linear output at 120V and 240V.

Are WIPE hotwire underfloor heating cables and mats certified?

Yes. WIPE hotwire underfloor heating cable and mat systems are cUL listed and include certifications and standards such as UL 758, UL 1683, UL 11537, UL 21937 and CSA C22.2 No. 130-03, with wet-rated options.

WIPE hotwire manufactures underfloor heating cables and underfloor heating mats engineered for reliable, energy-efficient electric floor heating across residential and commercial applications. Available as a flexible loose-lay heating cable or a pre-spaced heating mat, our underfloor heating systems use twin ETFE-insulated conductors, aluminium foil shielding with drain wire, and a high-temperature PVC outer jacket rated to 30 Mil thickness, delivering consistent heat density of up to 15.2 W/Sq ft across 120 V and 240 V configurations.

Whether you are installing electric floor heating beneath tile, stone, or engineered flooring in a new build or a renovation, WIPE hotwire's underfloor heating cable and mat solutions are designed for long-term durability and even heat distribution. Every product is certified to cUL, UL 758, UL 1683, UL 11537, UL 21937, and CSA C22.2 NO130-03 standards, and is wet-rated for use in bathrooms and other moisture-prone areas.

Explore our full range of electric underfloor heating solutions, including aluminium foil heating mats for thin-profile installations, in-slab heating cables for concrete applications, and earth-soil heating systems for large-scale ground heating projects. Download our technical datasheet for detailed wattage charts, mesh dimensions, and installation guidance, or get in touch with our team to find the right underfloor heating cable or mat for your project.
